摻鐿光纖放大器
Nuphoton Technologies, Inc.是光纖激光器和光纖放大器的先驅，其應用領域涵蓋工業，國防，航空航天，生物醫學，電信和研究領域。該公司自1996年開始運營，使用專有的尖端技術設計和制造高性能光纖激光器、EDFA和寬帶ASE源。
摻鐿光纖放大器型號:YDFA-CW-PM-1064-TT-9W-40-FCA
摻鐿光纖放大器產品代碼:1816
微處理器控制
摻鐿光纖放大器 YDFA-CW-PM-1064-TT-9W-40-FCA 產品規格
| Parameters | Specifications |
| Wavelength Range | 1064 nm |
| Polarization Maintaining Property | Provided. Optical signal: slow axis light is amplified; fast axis light is blocked |
| Gain Flattening Filter | Not included |
| Output Power | 8 W minimum, 9 W typical at 1064 nm, tested with 1064 nm, 0 dBm input |
| Gain | Up to 39.6 dB, tested with 1064 nm, 0 dBm input |
| Optical Input Fiber, Two channels | 900um loose tube, PM-FC/APC mating connector, PM980 |
| Optical Output Fiber, Two channels | 900um loose tube, PM collimator, 1 meter, single-clad PM 10/125 (NA=0.07) |
| Polarization Extinction Ratio | ≥ 18 dB |
| Input Power Monitoring | Included |
| Output Power Monitoring | Included |
| Input Optical Isolator | Included |
| Output Optical Isolator | Included |
| Control and Communication Interface | RS-232, RS-232 voltage level |
| Dimension | 630 x 420 x 90 mm |
| Power Input | +110 VAC |
| Operational Case Temperature Range | +5 to +45?0C |
| Mode of Operation | ACC (constant pump current control) |

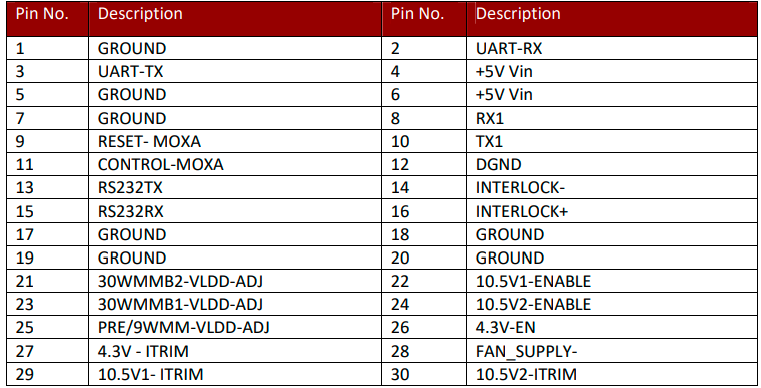

電子連接器:
部件號:Molex- 5018763040
