摻鐿光纖放大器
Nuphoton Technologies, Inc.是光纖激光器和光纖放大器的先驅，其應用領域涵蓋工業，國防，航空航天，生物醫學，電信和研究領域。該公司自1996年開始運營，使用專有的尖端技術設計和制造高性能光纖激光器、EDFA和寬帶ASE源。
摻鐿光纖放大器型號:YDFA-CW-1064-17-20-FCA
摻鐿光纖放大器產品編號:1606
微處理器控制的YDFA
摻鐿光纖放大器YDFA-CW-1064-17-20-FCA規格
| Parameters | Specifications |
| Wavelength Range | 1064 nm typical |
| Gain Flattening Filter | Not included |
| Output Power | 17 dBm at 1064 nm, tested with 1064 nm, -3 dBm input |
| Gain | 20 dB, tested with 1064 nm, -3 dBm input |
| Optical Input Fiber | 900um loose tube, FC/APC, blue, 1 meter, HI-1060 |
| Optical Output Fiber | 900um loose tube, FC/APC, red, 1 meter, HI-1060 |
| Input Power Monitoring | None |
| Output Power Monitoring | None |
| Control and Communication Interface | RS-232, UART 5V / 0 V voltage level |
| Dimension | 90 x 70 x 15 mm |
| Power Input | +5 VDC +/- 5% |
| Electrical Interface Connector | PN: SQT-115-03-L-D, Female 30-PIN |
| Operational Case Temperature Range | 0 to +65?0C |
| Mode of Operation | ACC (constant pump current control) |

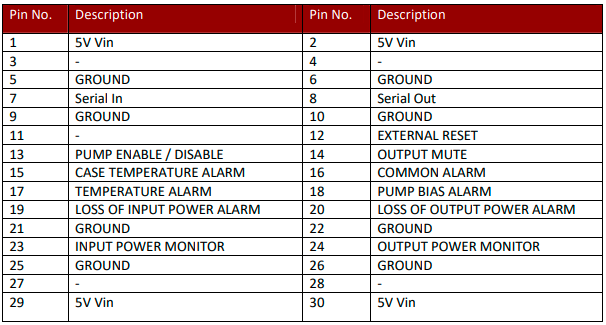

電子連接器:
零件號:SQT-115-03-L-D
