摻鉺光纖放大器
Nuphoton Technologies, Inc.是光纖激光器和光纖放大器的先驅，其應用領域涵蓋工業，國防，航空航天，生物醫學，電信和研究領域。該公司自1996年開始運營，使用專有的尖端技術設計和制造高性能光纖激光器、EDFA和寬帶ASE源。
摻鉺光纖放大器型號:EDFA-CW-RS-CL0-30-27-FCA
摻鉺光纖放大器產品編號:1826
微處理器控制的EDFA
摻鉺光纖放大器 EDFA-CW-RS-CL0-30-27-FCA產品規格
| ?參數 | 規格 |
| Wavelength Range | 1535 – 1563nm C-band and 1570 – 1605nm L-band |
| Gain Flattening Filter | Not included |
| Output Power | +27 dBm in C-band and +27 dBm in L-band |
| Gain | 27 dB, tested with 1550 nm / 0 dBm input, and 1590 nm / 0 dBm input |
| Optical Input Fiber | 900um loose tube, FC/APC, blue, 1 meter, SMF-28 |
| Optical Output Fiber | 900um loose tube, FC/APC, red, 1 meter, SMF-28 |
| Input Power Monitoring Range | -10 dBm to +10 dBm at C and L band, independent |
| Output Power Monitoring Range | +10 to +28 dBm at C and L band, independent |
| Input Power Measurement Accuracy | ≤ +/- 0.5 dB, 1550 nm / 1590 nm |
| Output Power Measurement Accuracy | ≤ +/- 0.5 dB, 1550 nm / 1590 nm |
| Control and Communication Interface | RS-232, LVTTL voltage level |
| Dimension | 127 x 94 x 25mm |
| Power Input | +12 VDC +/- 5% |
| Electrical Interface Connector | PN: ASP202700-01, male 30-PIN |
| Operational Case Temperature Range | 0 to +50?0C |
| Mode of Operation | AOPC (constant output power control), ACC (constant pump current control) |

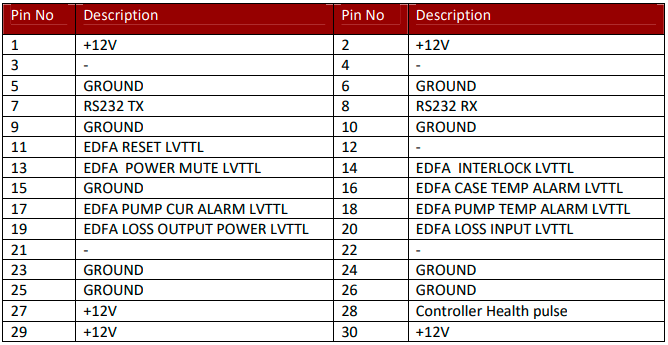

電子連接器:
部件號:ASP202700-01
