摻鉺光纖放大器
Nuphoton Technologies, Inc.是光纖激光器和光纖放大器的先驅，其應用領域涵蓋工業，國防，航空航天，生物醫學，電信和研究領域。該公司自1996年開始運營，使用專有的尖端技術設計和制造高性能光纖激光器、EDFA和寬帶ASE源。
摻鉺光纖放大器型號:EDFA-CW-C0-MR-18-18-FCA
摻鉺光纖放大器產品編號:1606
微處理器控制的EDFA
摻鉺光纖放大器 EDFA-CW-C0-MR-18-18-FCA產品規格
| ?參數 | 規格 |
| Wavelength Range | 1530 – 1565nm, C-band single channel |
| Gain Flattening Filter | Not included |
| Output Power | +18 dBm, tested with 1550 nm, 0 dBm input |
| Gain | 18 dB, tested with 1550 nm, 0 dBm input |
| Optical Input Fiber | 900um loose tube, FC/APC, blue, 1 meter, SMF-28 |
| Optical Output Fiber | 900um loose tube, FC/APC, red, 1 meter, SMF-28 |
| Input Power Monitoring Range | -15 dBm to +5 dBm |
| Output Power Monitoring Range | +3 to +19 dBm |
| Input Power Measurement Accuracy | ≤ +/- 0.5 dB, 1550 nm |
| Output Power Measurement Accuracy | ≤ +/- 0.5 dB, 1550 nm |
| Noise Figure | ≤ 5.0 dB, tested at 18 dB gain, 1550 nm, 0 dBm input |
| PMD | ≤ 0.5 ps |
| PDG + PDL | ≤ 0.3 dB |
| Control and Communication Interface | RS-232, UART 5V / 0 V voltage level |
| Dimension | 90 x 70 x 15mm |
| Power Input | +5 VDC +/- 5% |
| Electrical Interface Connector | PN: SQT-115-03-L-D, Female 30-PIN |
| Operational Case Temperature Range | -5 to +700C |
| Mode of Operation | AOPC (constant output power control) , ACC (constant pump current control) |

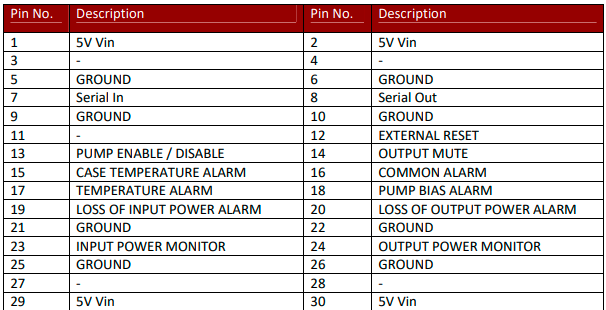

電子連接器:
零件號:SQT-115-03-L-D
