摻鉺光纖放大器
Nuphoton Technologies, Inc.是光纖激光器和光纖放大器的先驅，其應用領域涵蓋工業，國防，航空航天，生物醫學，電信和研究領域。該公司自1996年開始運營，使用專有的尖端技術設計和制造高性能光纖激光器、EDFA和寬帶ASE源。
摻鉺光纖放大器型號:EDFA-CW-C0-HR-17-20-FCA
摻鉺光纖放大器產品代碼:1401
微處理器控制的EDFA
摻鉺光纖放大器EDFA-CW-C0-HR-17-20-FCA產品規格
| 參數 | 規格 |
| Wavelength Range | 1530 – 1565nm |
| Gain Flattening Filter | Not included |
| Output Power | +17 dBm, tested with 1550 nm, input power -3 dBm |
| Gain | 20 dB, tested with 1550 nm, input power -3 dBm |
| Optical Input Fiber | 900um loose tube, FC/APC, blue, 1 meter, SMF-28 |
| Optical Output Fiber | 900um loose tube, FC/APC, red, 1 meter, SMF-28 |
| Input Power Monitoring Range | -12 dBm to +3 dBm |
| Output Power Monitoring Range | +3 to +18 dBm |
| Input Power Measurement Accuracy | ≤ +/- 0.5 dB, 1550 nm |
| Output Power Measurement Accuracy | ≤ +/- 0.5 dB, 1550 nm |
| Noise Figure | ≤ 5.5 dB, tested at 20 dB gain, 1550 nm, input power -3 dBm |
| PMD | ≤ 0.5 ps |
| PDG + PDL | ≤ 0.3 dB |
| Control and Communication Interface | RS-232, RS232 voltage level |
| Dimension | 71 x 43 x 12mm |
| Power Input | +3.3 VDC +/- 5% |
| Electrical Interface Connector | PN: DF11-6DP-2DSA, 6-PIN |
| Operational Case Temperature Range | -5 to +700C |
| Mode of Operation | AOPC (constant output power control), ACC (constant pump current control) |

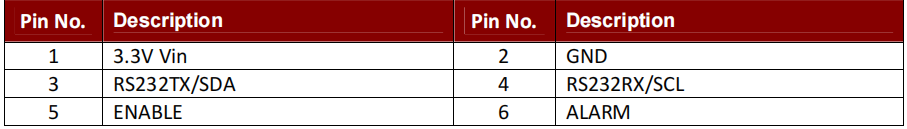

電子連接器
部件號:Hirose DF11-6DP-2DSA
