KGW-Isotherm(伊索森)KF 29-Z / KFL 29-Z系列 兩段式冷阱
Cold traps complete two-piece KF 29-Z / KFL 29-Z
KGW-Isotherm(伊索森)KF 29-Z / KFL 29-Z系列 兩段式冷阱應用：
KGW-Isotherm(伊索森)KF 29-Z / KFL 29-Z系列 兩段式冷阱優勢：
KGW-Isotherm(伊索森)KF 29-Z / KFL 29-Z系列 兩段式冷阱設計特點：
簡單的冷阱，也稱為指形冷阱，與真空泵一起用于標準應用。濕氣或溶劑在化學應用區域冷凝出來。冷阱用于保護真空泵。這種設計的特別之處在于用戶不需要三腳架來支撐冷阱。冷阱有一個珠子，用它把冷阱鉤在杜瓦瓶的支撐環上。因此，冷阱可以快速方便地更換。LN2或CO2用于冷卻。冷卻劑應比物質的冷凝溫度低至少50℃。

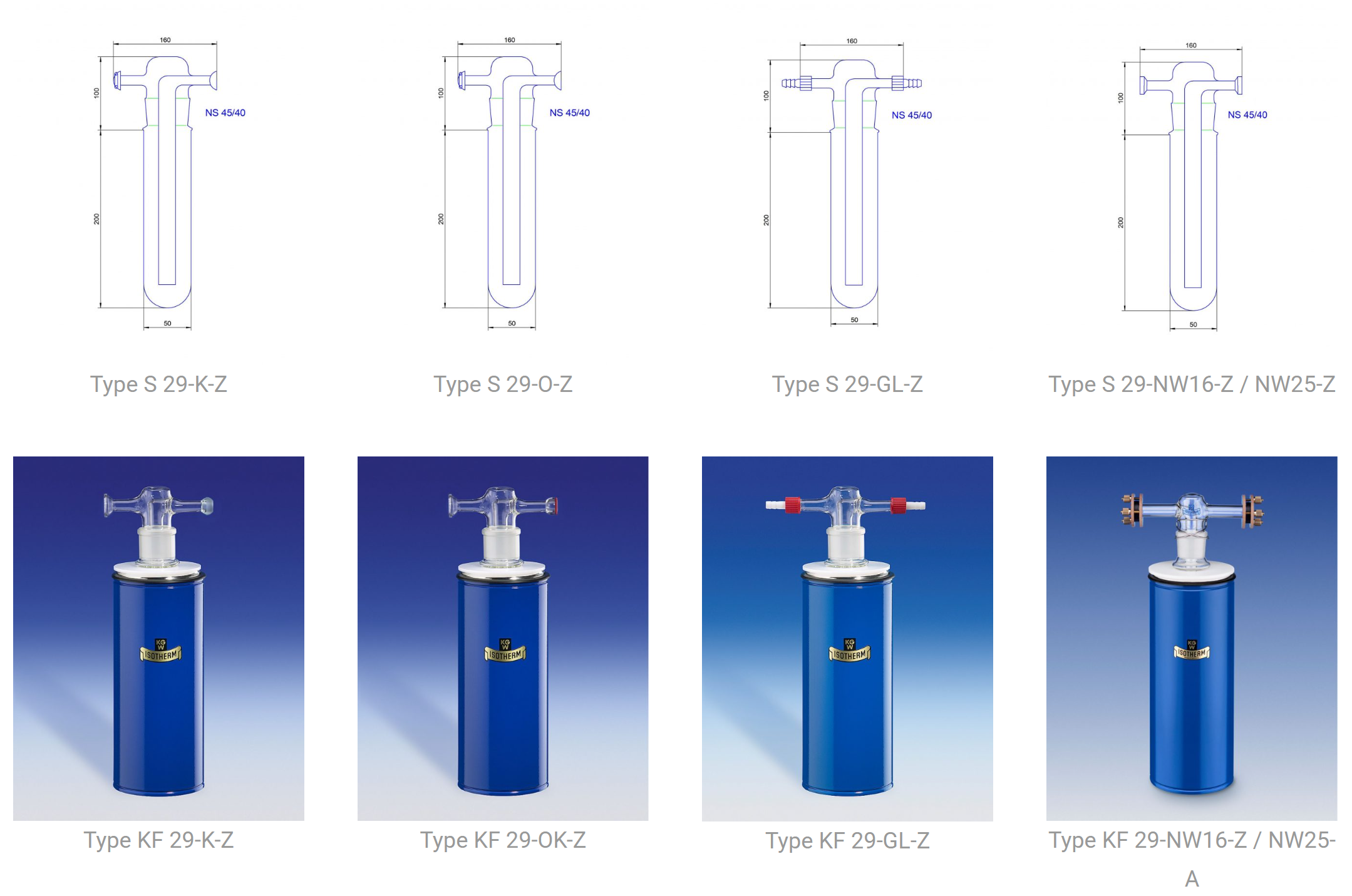

簡短版本S29-Z圖紙：
簡短版本S29-Z規格參數：
| 型號 | 理論冷凝液容積[ml] | 理論冷卻劑容積 [ml] | 適用杜瓦瓶類型 | 連接方式 | 貨號 |
|---|---|---|---|---|---|
| KF 29-K-Z | 150 | 1000 | 12C | Spherical ground joint S29 | 17400 |
| KF 29-OK-Z | 150 | 1000 | 12C | Spherical ground joint S29 with O-ring seal | 17401 |
| KF 29-GL-Z | 150 | 1000 | 12C | Glass thread GL18 with olive | 17402 |
| KF 29-NW16-Z | 150 | 1000 | 12C | Vacuum flange KF-NW 16 | 17400-NW16 |
| KF 29-NW25-Z | 150 | 1000 | 12C | Vacuum flange KF-NW 25 | 17400-NW25 |

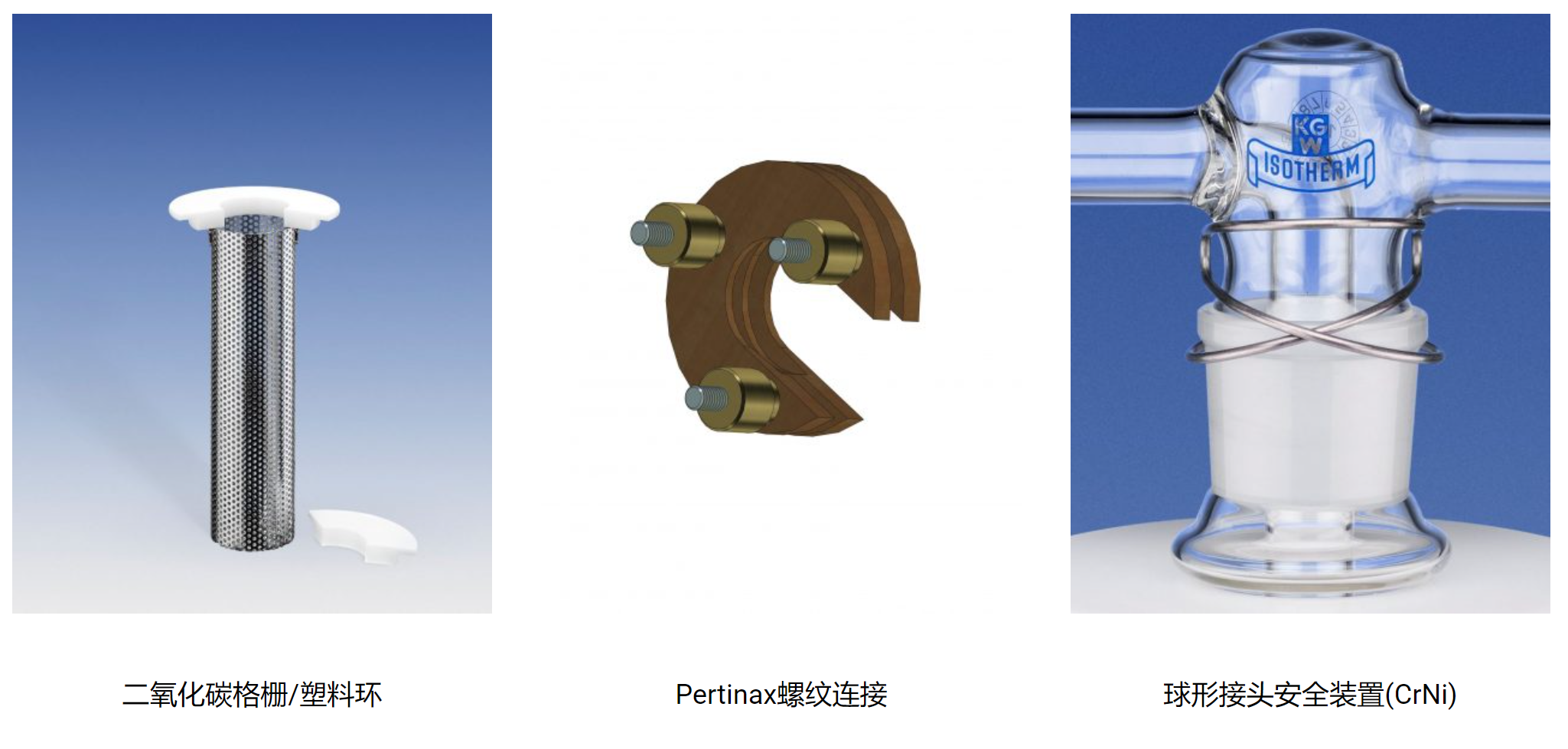

簡短版本S29-Z冷阱配件：
| Designation | Article no. |
|---|---|
| Cooling finger S 29-K-Z | 17405 |
| Cooling finger S 29-O-Z | 17406 |
| Cooling finger S 29-GL-Z | 17407 |
| Cooling finger S 29-NW16-A | 17405-NW16 |
| Cooling finger S 29-NW25-A | 17405-NW25 |
| CO2 grid | 17570 |
| Plastic ring | 1733 |
| Ground joint safety device NS45/40 (CrNi) | 17353 |
| GL 18 Olive | 17331 |
| Cable clamp S29 | 17341 |
| Pertinax screw connection KF 10/16 | 17315 |
| Pertinax screw connection KF 20/25 | 17316 |
| Centering and O-ring KF 10/16 | 17320 |
| Centering and O-ring KF 20/25 | 17321 |

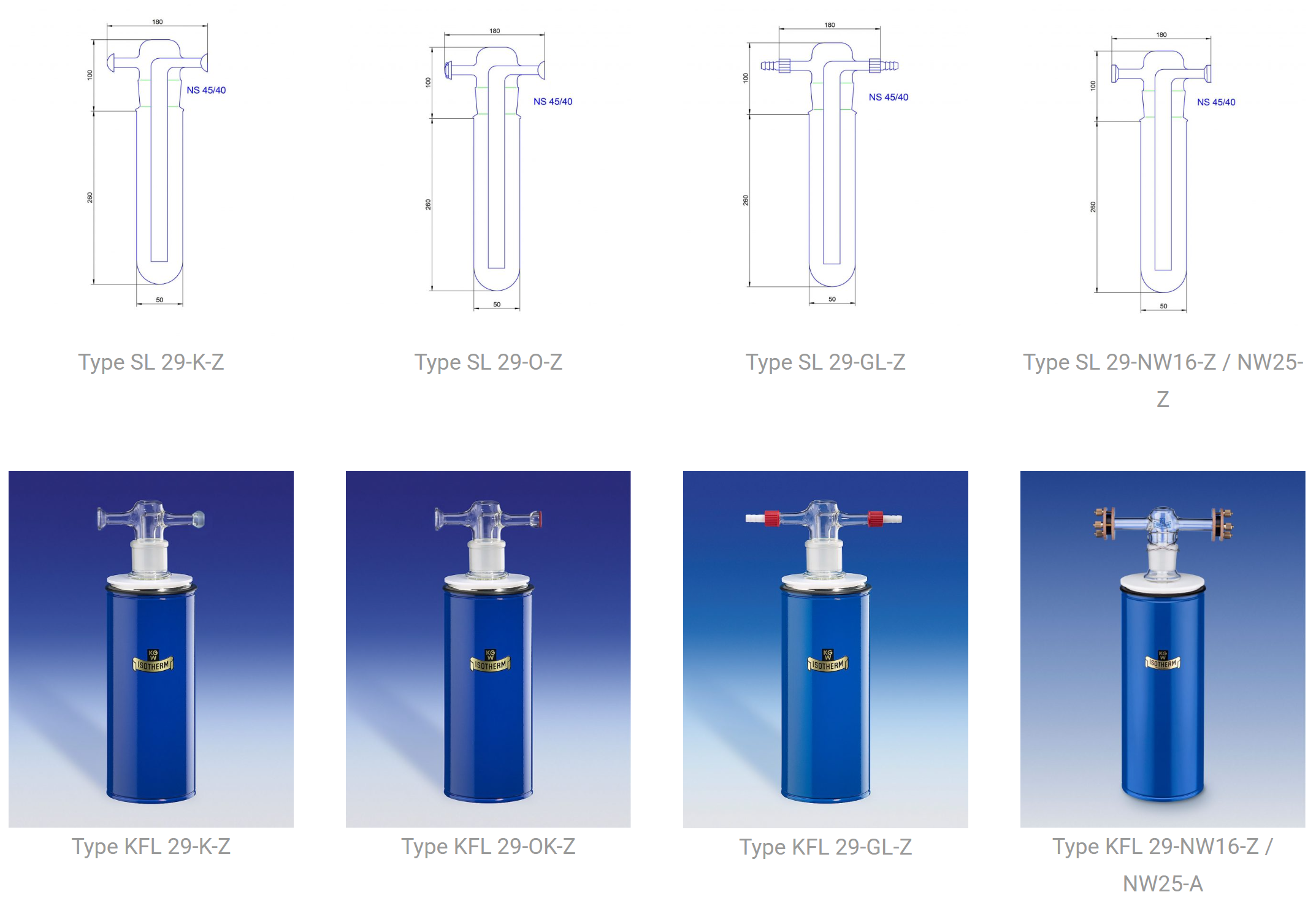

長版KFL 29冷阱圖紙:
長版KFL 29冷阱技術規格：
| 型號 | 理論冷凝液容積 [ml] | 理論冷卻劑容積 [ml] |
| 連接方式 | 貨號 | |
|---|---|---|---|---|---|---|
| KFL 29-K-Z | 250 | 2000 | 18C | Spherical ground joint S29 | 17410 | |
| KFL 29-OK-Z | 250 | 2000 | 18C | Spherical ground joint S29 with O-ring seal | 17411 | |
| KFL 29-GL-Z | 250 | 2000 | 18C | Glass thread GL18 with olive | 17412 | |
| KFL 29-NW16-Z | 250 | 2000 | 18C | Vacuum flange KF-NW 16 | 17410-NW16 | |
| KF 29-NW25-Z | 250 | 2000 | 18C | Vacuum flange KF-NW 25 | 17410-NW25 |
長版KFL 29冷阱配件：
| Designation | Article no. |
|---|---|
| SL 29-K-Z | 17415 |
| SL 29-O-Z | 17416 |
| SL 29-GL-Z | 17417 |
| SL 29-NW16-Z | 17415-NW16 |
| SL 29-NW25-Z | 17415-NW25 |
| CO2 grid | 17571 |
| Plastic ring | 1733 -L |
| Ground joint safety device NS45/40 (CrNi) | 17353 |
| GL 18 Olive | 17331 |
| Cable clamp S29 | 17341 |
| Pertinax screw connection KF 10/16 | 17315 |
| Pertinax screw connection KF 20/25 | 17316 |
| Centering and O-ring KF 10/16 | 17320 |
| Centering and O-ring KF 20/25 | 17321 |
