德國CAT RM 10帶可拆卸輥筒的輥式混合機 RM5/RM5K/RM5F

RM 10

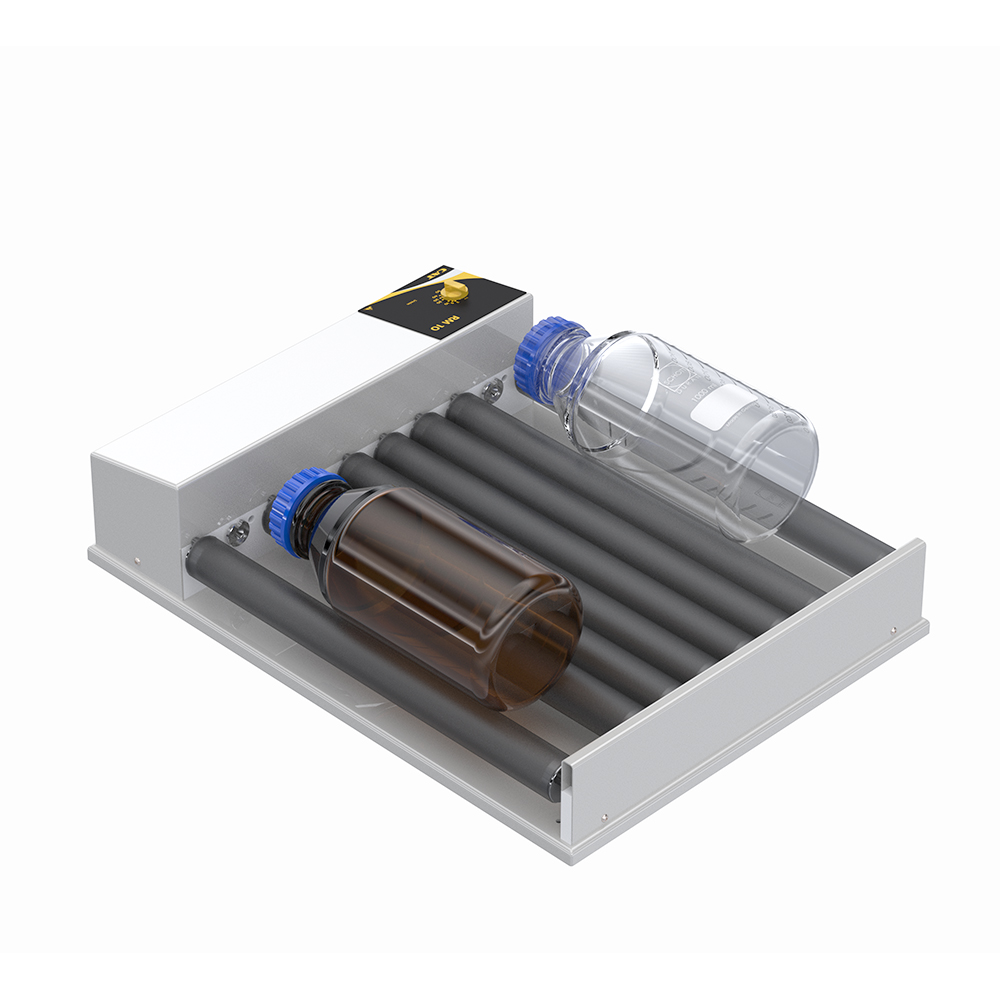

帶 10 個輥?zhàn)拥妮伿綌嚢铏C(jī)。同步旋轉的 PVC 滾輪提供均勻的擺動表面,非常適合同時輕柔、均勻地混合圓柱形血管與血液或其他細胞懸液等。每個卷筒都可以單獨取出,以提供更大的圓柱形管或瓶子(最大 5 升)。速度是連續可調的。

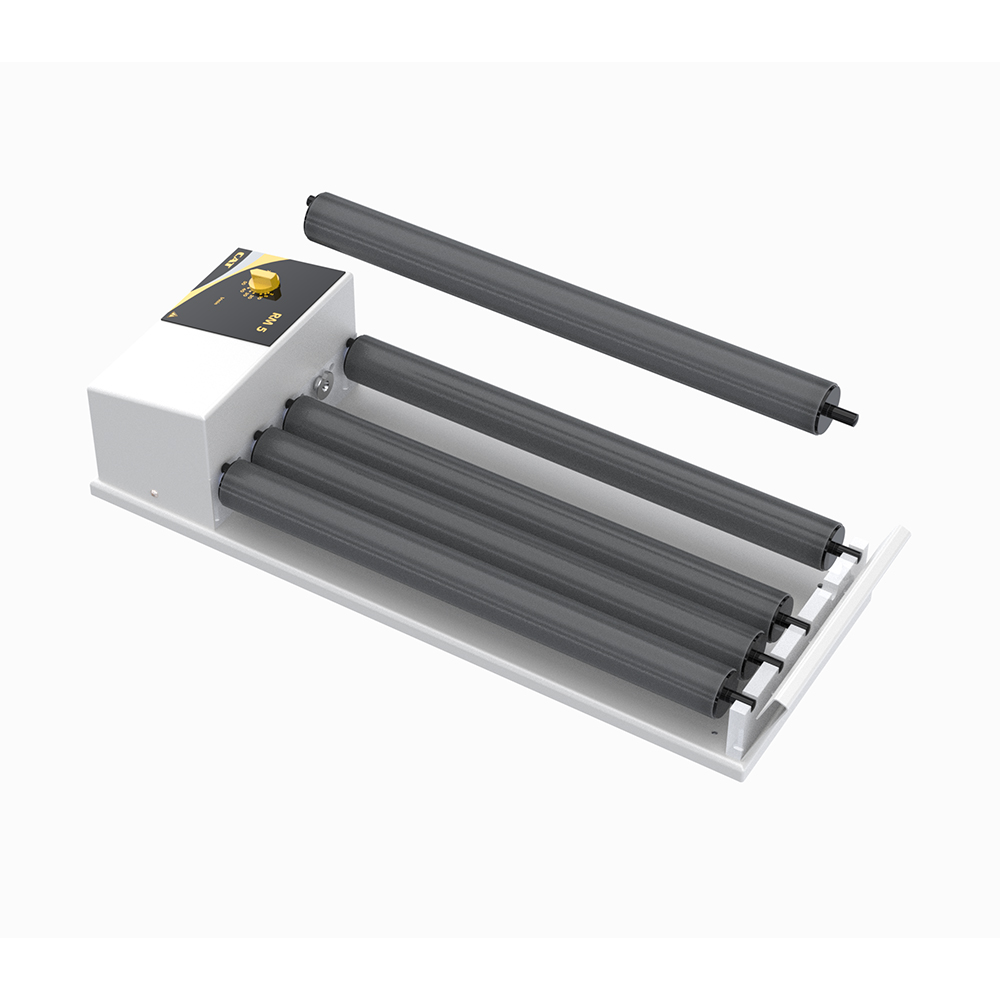

  • 可拆卸滾輪
  • 速度范圍廣
  • 低壓電源

規格

NameValue
Speed range [1/min]4-30 oder 10-70
Length of rolls [mm]330
Number of rolls10
Removable rollsYes
Centric rolls optionoptional
Material of rollsPVC
Tilt angle [°]3
Load, max. [kg]5
Diameter of test tubes min. [mm]10
Diameter of test tubes max. [mm]300
Power supply [V]24 VDC
Weight [kg]6.5
Width [mm]360
Height [mm]110
Depth [mm]480
Protection class according to DIN EN 60529IP32
Overheat protectionYes
Overload protectionYes
Motor typeBLDC
RotationCCW
Operation modeLong-term duty
CertificationCE
