德國CAT R100C置頂式攪拌器

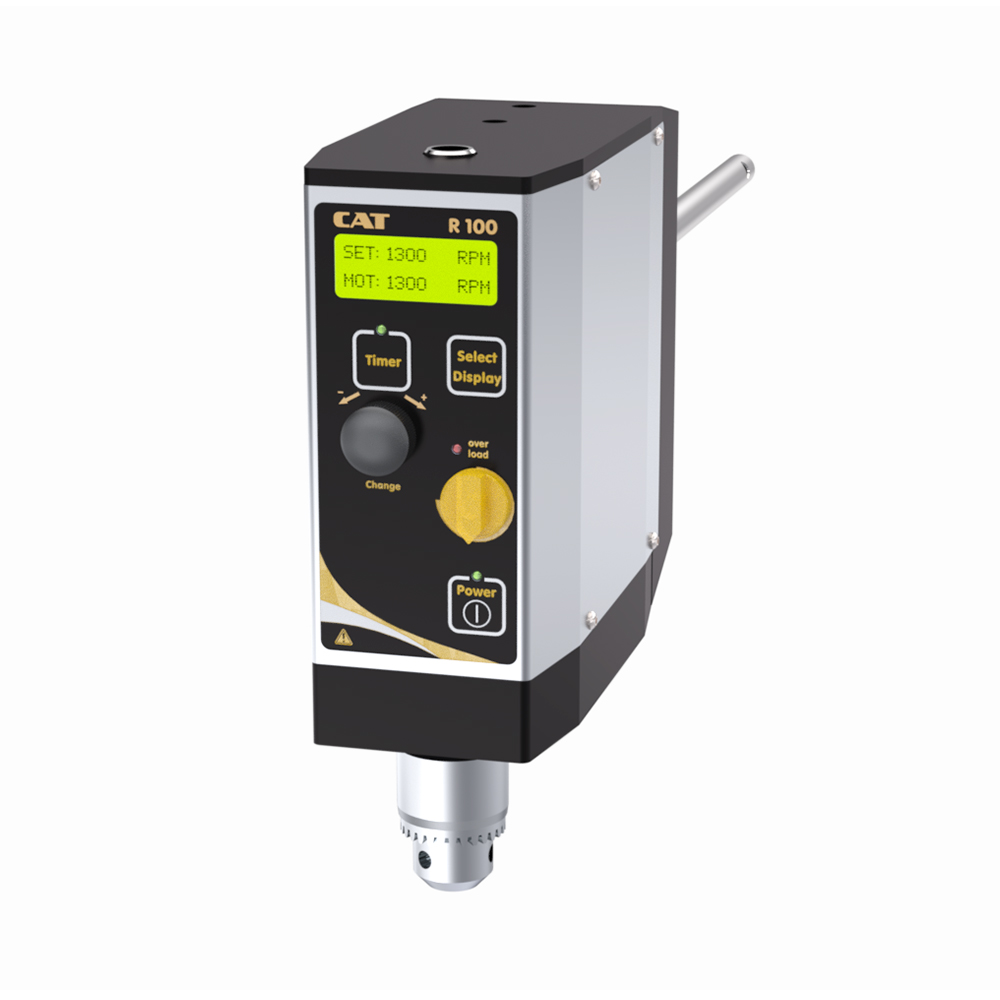

R 100C

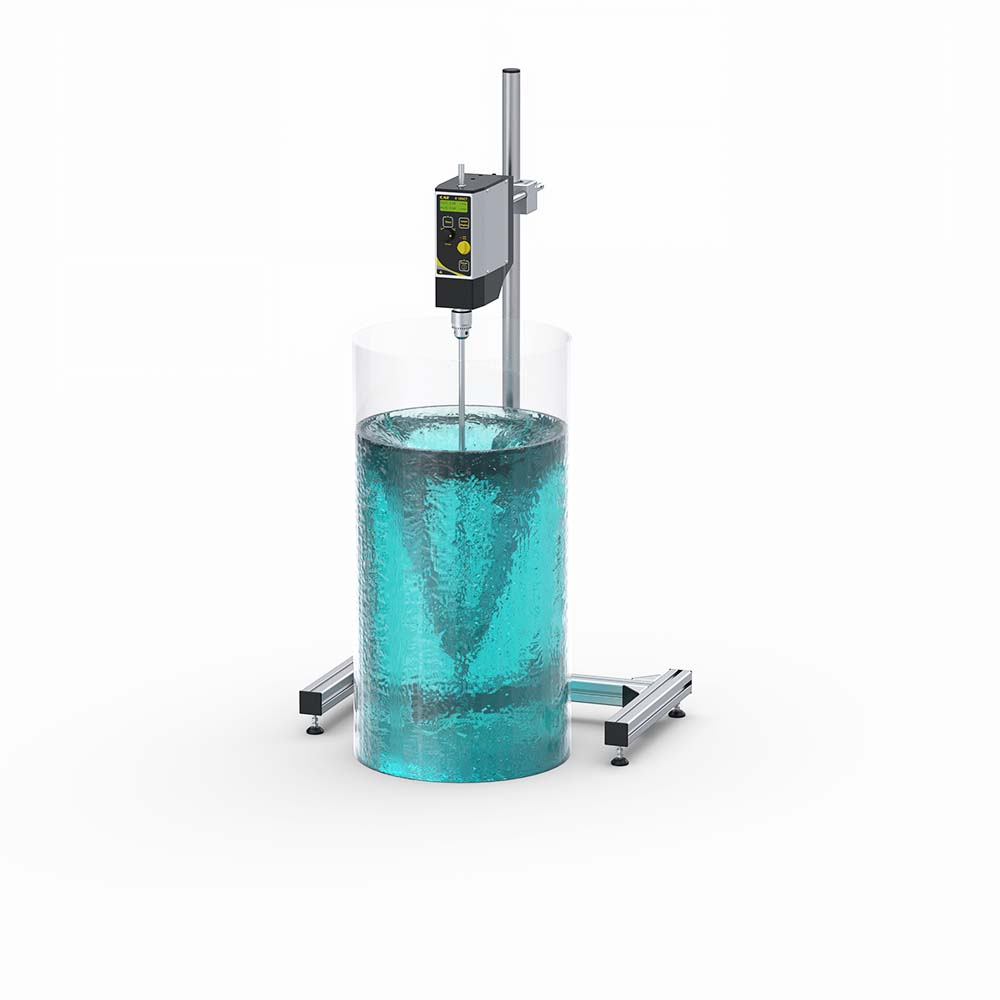

R100 系列包含我們最強大的頂置攪拌器。它們非常適合高粘度介質以及高達 200 升的容量的重型應用
- 背光顯示屏
- 空心軸
- 過載和過熱保護
- 關閉定時器
- 可編程扭矩限制
- 可編程電機速度限制
- 用于計算機控制的 RS232 接口
不適合連續運行
規格
| Name | Value |
|---|---|
| Speed range [1/min] | 40 – 2000 |
| Digital display type | LCD |
| RPM display | Yes |
| Timer display | Yes |
| Timer function | Yes |
| Absolut torque display | Yes |
| Relative torque display | Yes |
| Torque, max. [Ncm] | 150 |
| Stirring quantity, max. (H2O) [l] | 200 |
| Viscosity, max. [mPas] | 60.000 |
| Chuck range [mm] | 1 – 10.5 |
| Chuck type | keyed |
| Hollow Shaft | Yes |
| Power supply [V] | 230VAC 50Hz, 115VAC 60Hz |
| External power supply | Yes |
| PC interface | RS 232 |
| Analogue input | TTL |
| Analogue output | TTL |
| Weight [kg] | 4.7 |
| Width [mm] | 78 |
| Height [mm] | 230 |
| Depth [mm] | 200 |
| Protection class according to DIN EN 60529 | IP42 |
| Overheat protection | Yes |
| Overload protection | Yes |
| Motor type | DC |
| Shaft rotation | CCW |
| Operation mode | Short-term operation |
| Certification | CE |

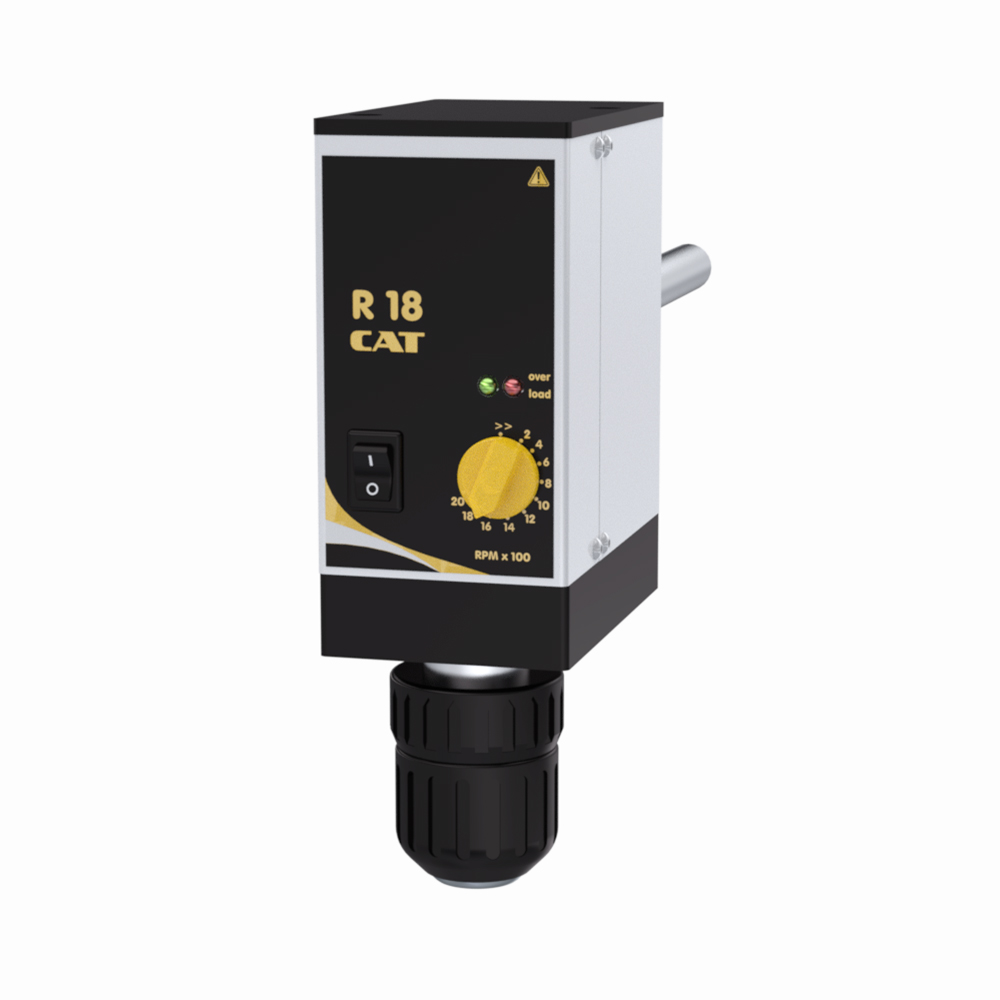

R 18
我們的通用實驗室系列。這些堅固的頂置攪拌器適用于任何實驗室（專業或課堂）中所有中等粘度的攪拌需求。由于其纖薄的設計，它們非常適合進行一系列測試。
- 快速釋放卡盤
- 過載和過熱保護
- 連續可調速度
| Name | Value |
|---|---|
| Speed range [1/min] | 100 – 2000 |
| Digital display type | – |
| RPM display | – |
| Timer display | – |
| Timer function | – |
| Absolut torque display | – |
| Relative torque display | – |
| Torque, max. [Ncm] | 18 |
| Stirring quantity, max. (H2O) [l] | 20 |
| Viscosity, max. [mPas] | 8.000 |
| Chuck range [mm] | 1 – 10.5 |
| Chuck type | keyless |
| Hollow Shaft | – |
| Power supply [V] | 230VAC 50Hz, 115VAC 60Hz |
| External power supply | – |
| PC interface | – |
| Analogue input | – |
| Analogue output | – |
| Weight [kg] | 2.2 |
| Width [mm] | 65 |
| Height [mm] | 200 |
| Depth [mm] | 120 |
| Protection class according to DIN EN 60529 | IP42 |
| Overheat protection | Yes |
| Overload protection | Yes |
| Motor type | DC |
| Shaft rotation | CCW |
| Operation mode | Short-time duty |
| Certification | CE |
