Beam Imaging Solutions presents the new model 450 ion beam decelerator for generating high current low energy ion beams. This decelerator was designed to increase low energy ion beam current by minimizing ion beam scattering with larger lens elements and also allowing for much higher initial ion beam energies before deceleration.

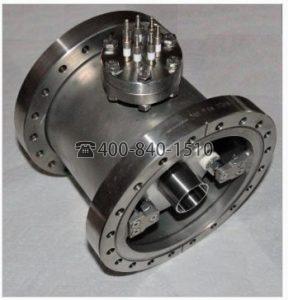

Available in vacuum housing with two rotatable 8″ conflat flanges? and two 2.75″ conflat ports for the electrical connections. The housing is 6.750″ (171.45mm) long.
Product?Specifications
Lens Elements:
- 304 Stainless Steel
Lens Element Spacers:
- Alumina/ceramic
Lens Element Voltage rating:
- Max. recommended 10kV
Feedthrough Type:
- Two?,?3-terminal 5kV MHV Feedthroughs , Standard (Two, 3 terminal 10kV SHV-10 optional)
UHV Compatible
- Vacuum housing with 6″ OD tube and 8″ rotatable conflats, 6.750″ (171.45mm) long. Two, 2.75″ conflat ports included for electrical connections.
Weight with vacuum housing:
- 20.5 pounds ~9kg
