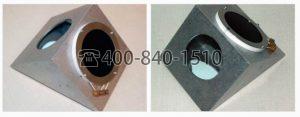

Beam Imaging Solutions (BIS)?introduces the new 90-degree BOS which allows remote imaging of a beam at 90 degrees to the imaging plane. Like the BOS-18-IW and BOS-40-IW, the new BOS-75-IW can be attached to a linear motion feedthrough and placed into and out of the beam allowing for remote imaging, deep within the vacuum chamber. The imaging is accomplished by mounting a standard BOS MCP/phosphor screen stack onto a metal housing which has a mirror mounted at 90-degrees with respect to the imaging plane. The housing is wedged shaped to minimize the physical size of the imager, and has convenient points for attaching to a linear motion feedthrough. Electrical connections are made by attaching flexible electrically insulated wires to a connection block on the wedge from an electrical feedthrough. In their standard form, the BOS-IW units are available with the MCP/phosphor assembly mounted to wedge shaped housing with electrical connection block. BOS-IW kits are also available, and include the BOS-IW unit with electrical feedthrough, viewport, linear motion feedthrough and camera systems.

Imaging Area:

  • 75mm Diameter

MCP: (Standard)

  • 3.410″ Diam. (BOS-75), 25 micron channel diameter, Detection or Imaging Grade
  • 75mm active area, 32 micron pitch, 8° Bias Angle, 40:1 Aspect Ratio (Standard, BOS-75)
  • Min. Gain:? 1 x 10^4 (single plate, Std.) 1000V? > 107 (chevron, OPT-01), 2000V

Phosphor Screen (Standard)

  • P-43 with aluminum overcoat. P-43 Peak Wavelength: λ= 545 nm.

Construction Materials

  • Housing: Aluminum (Std.) 304 Stainless is optional
  • Electrical Connection Block: ULTEM 1000
  • Mirror: 125mm (W) x 150mm (L) x 3mm (T), 2 waves per inch flatness, B270 Glass, Index=1.523

Power Supply Requirements:

  • 0 – + 1000V, 1mA single MCP (Standard)
  • 0 – + 2000V, 1mA dual MCP (OPT-01)
  • 0 – + 5000V, 1 mA Phosphor Screen

Beam Energy Range:

  • 1 eV to over 50 keV

Beam Current Range:

  • < 10 μA (with optional beam attenuation grids)

Vacuum:

  • 1 x 10-6 Torr or better required to operate MCP
  • UHV compatible, maximum bakeout temperature 300 C
