模擬標準信號
AD-STVEX 710 GVD
產品介紹
電源隔離放大器用于為安裝在危險區域的變送器提供本質安全電源。電源隔離放大器本身作為相關電氣設備安裝在非危險區域（即安全區域）。信號被電隔離并傳輸到非危險區域。無源輸入還允許來自危險區域的有源信號。有源電流輸出、電流吸收輸出和電壓輸出便于適應后續信號輸入。該設備可在 24 V DC 或 230 V AC 下運行。
產品參數
| Transmitter input, intrinsically safe | |
|---|---|
| Feeding voltage | 23V @ 4mA … 16V @ 20mA |
| Maximum measuring range | 0 … 22 mA |
| Maximum short circuit current | 68 mA |
| Current input, intrinsically safe | |
| Maximum measuring range | 0 … 22 mA |
| Input resistance | 50 Ohm |
| Current output, active | |
| Maximum output range | 0 … 22 mA |
| Max. burden | 500 Ohm |
| Current sink output, passive | |
| Maximum output range | 0 … 22 mA |
| Max. external supply voltage | 25 V DC |
| Max. burden | (Uextern?– 2V) / 20mA |
| Output voltage | |
| Maximum output range | 0 … 11 V |
| Min. burden | 2 kOhm |
| Transmission behaviour | |
| Resolution input | ~ 20 μA/LSB |
| Resolution current output | ~ 20 μA/LSB |
| Resolution voltage output | ~ 10 mV/LSB |
| Maximum error | 0,2 % of full scale |
| Temperature influence | ~ 50 ppm/K |
| Response time | ~ 100 ms (10 … 90 %) |
| Auxiliary voltage | |
| Range | 20 … 120 V DC / 50 … 250 V AC |
| Power consumption | 1,8 W / 3,5 VA |
| Environmental conditions | |
| Ambient temperature | -20 … +60 °C |
| Approval | |
| ATEX | II (1) G [Ex ia Ga] IIC II (1) D [Ex ia Da] IIIC |
| Type examination certificate | BVS 11 ATEX E 013 X |
| Standards | EN 60079-0, EN 60079-11 EN 60079-26, EN 61241-11 |
| EMC | |
| Product family standard | EN 61326-1 |
| Emitted interference | EN 55011, CISPR11 Kl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
接觸放大器

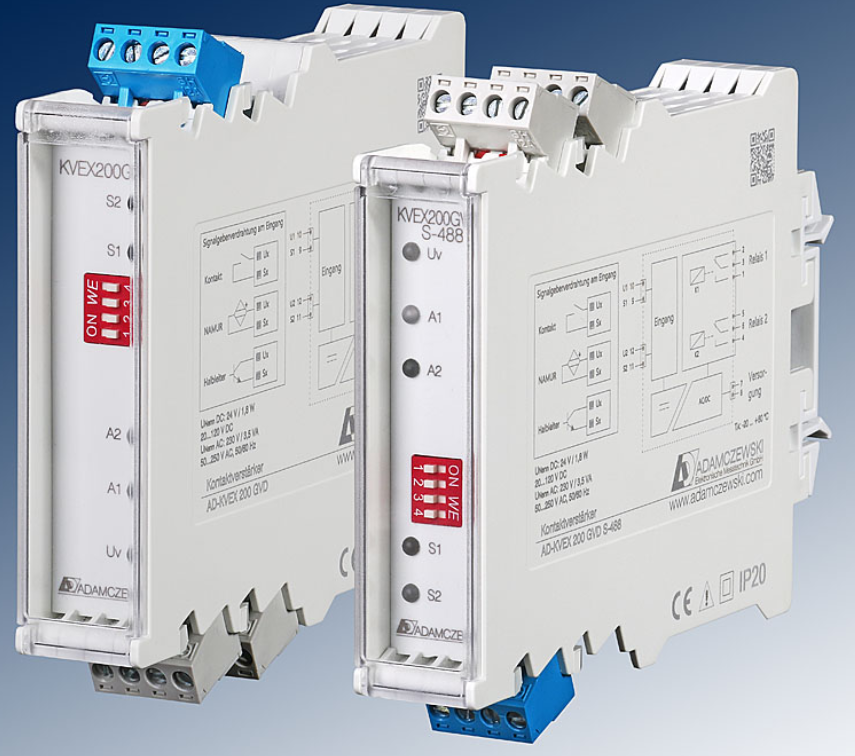

AD-KVEX 100/200 GVD
產品介紹
接觸放大器（開關放大器）優選地用于保護弱傳感器接觸或放大二進制傳感器信號。 AD-KVEX 100/200 GVD 提供在觸點輸出處放大的邏輯輸入信號。典型的輸入信號是簧片觸點、符合 Namur Namur (DIN EN 60947-5-6) 的信號傳感器或電阻變化。在輸出端，提供重載和無源觸點。對于每個導管，邏輯切換方向以及線路故障識別是可單獨切換的。 AD-KVEX 100/200 GVDO 版本具有無磨損半導體輸出，也通過光學隔離進行電流隔離。該器件包含電子寬范圍電源，可以在寬電源電壓范圍內運行。
產品參數
| Signal input | |
|---|---|
| Min. pulse width | 100 ms |
| Namur supply voltage | Ca. 8,2 V DC +/-3% |
| Logic level, Low | < 1,6 mA |
| Logic level, High | > 1,9 mA |
| Wire breakage detection | < 0,2 mA |
| Short circuit detection | > 7,8 mA |
| Signal types | Initiator DIN EN 60947-5-6, contact, transistor |
| Contact output | |
| Maximum switching load AC | 250 V, 2 A |
| Maximum switching load DC | 50 V, 2 A |
| Contact construction | Potential-free changeover |
| Switching operations mechanical | 1 x 10?7 |
| At 230V/2A AC, cos(phi)=1 | 6 x 10?5 |
| At 230V/2A AC, cos(phi)=0,4 | 2 x 10?5 |
| At 50V/2 A DC | 2 x 10?5 |
| Semiconductor output | |
| Max switching voltage | 30 V DC |
| Max. switching current | 50 mA DC |
| Supply | |
| Voltage range AC | 50 … 250 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Power consumption AC | 3,5 VA (2,3 VA ; KVEX 100 GVD) |
| Voltage range DC | 20 … 120 V DC |
| Nominal voltage DC | 24 V DC |
| Power consumption DC | 1,8 W (1W ; KVEX 100 GVD) |
| Transmission behaviour | |
| Response time | ~ 100 ms |
| Housing | |
| Dimensions (WxHxD) | 23 x 110 x 134 mm |
| Type of protection | IP 20 |
| Connection method | Detachable terminal clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 115 g |
| Manner of fastening | 35 mm DIN rail 35mm (EN50022) |
| Environmental conditions | |
| Ambient temperature | -20 … +60 °C |
| Storage and transport | -20 … +70 °C (no condensation) |
| Approval | |
| ATEX | II(1) G [Ex ia Ga] IIC II(1) D [Ex ia Da] IIIC |
| EU-Type Examination Certificate | BVS 16 ATEX E 038 X |
| Safety Specifications per channel | |
| Voltage Uo | 9,56 V DC |
| Current Io | 10,62 mA DC |
| Power Po | 25,4 mW |
| Max. external capacitance Co ||C ||B |||C ||A | 3,6 μF 26 μF 210 μF |
| Max. external inductance Lo ||C ||B |||C ||A | 315 mH 1261 mH 2522 mH |
| Max. external inductance / resistance ratio Lo/Ro ||C ||B |||C ||A | 1,41 mH/Ohm 5,65 mH/Ohm 11,3 mH/Ohm |
| Internal capacitance Ci | N/A |
| Internal inductance Li | N/A |
| Safety Specifications 2 channels parallel | |
| Voltage Uo | 9,56 V DC |
| Current Io | 21,24 mA DC |
| Power Po | 50,8 mW |
| Max. external capacitance Co ||C ||B |||C ||A | 3,6 μF 26 μF 210 μF |
| Max. external inductance Lo ||C ||B |||C ||A | 78,8 mH 315,25 mH 630,5 mH |
| Max. external inductance / resistance ratio Lo/Ro ||C ||B |||C ||A | 0,706 mH/Ohm 2,826 mH/Ohm 5,565 mH/Ohm |
| Internal capacitance Ci | N/A |
| Internal inductance Li | N/A |
| EMC | |
| Product family standard | EN 61326-1?1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Input / output | 3 kV, 50 Hz (1 min.) |
| Signal / supply unit | 3 kV, 50 Hz (1 min.) |
| Protection circuits | |
| Input | Electrical surge protection |
| Power supply | Protection against over voltage, over temperature and reverse polarity |
