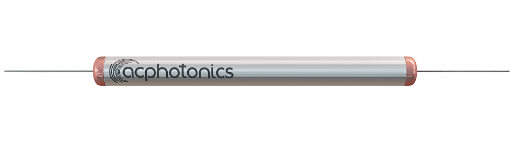

直列式衰減器
特性
全光纖結構
在線配置
優異的環境穩定性和可靠性
應用程序
電信系統
數字，混合和am -視頻系統
有線電視系統
局域網
產品規格
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Fiber Orientation | Single window | Dual window | |
| Operating Wavelength | nm | 1310±40, 1550±40, 1585±40 or Custom | 1310/1550±40, 1310/1585±40 |
| Attenuation Tolerance | dB | Attenuation Range: 1-5: ± 0.30 6-10: ± 0.50 11-20: ± 1.0 21-25: ± 1.5 | Attenuation Range: 1-5: ± 0.50 6-10: ± 0.80 11-20: ± 1.3 21-25: ± 1.8 |
| Back Reflection | dB | ≥ 60 | |
| Operating Temperature | °C | – 20 to +75 (- 40 to +85 is also available upon request) | |
| Storage Temperature | °C | – 40 to +85 | |
| Package Dimensions | mm | M= ?3.0X40 A= ?3.0X54 B= ?3.0X60 C=98X14X8.5 (LXWXH) | |
All values referencedare without connector.
