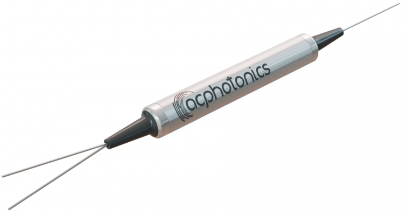

CWDM 1×2
ACP的粗波分復用器(CWDM)采用薄膜涂層技術和專有的非通量金屬鍵合微光學封裝設計。它具有低插入損耗，高通道隔離，寬通帶，低溫靈敏度和無環氧樹脂光路。
特性
低插入損耗
寬通帶
高通道隔離
高穩定性和可靠性
無環氧光路
應用程序
線監測
WDM網絡
電信
手機應用程序
光纖放大器
訪問網絡
產品規格
| Parameter | Unit | Mux/Demux |
|---|---|---|
| Operating Wavelength (Full band (FB)) | nm | 1270 ~ 1610 |
| Operating Wavelength (Standard) | nm | 1270 ~ 1350 or 1430 ~ 1610 |
| Center Wavelength (CWL) | nm | 1270, 1290, ……1610 or 1271, 1291, ……1611 |
| Center Wavelength (CWL) Accuracy | nm | ±0.50 |
| Channel Spacing | nm | 20 |
| Channel Passband (@-0.5dB bandwidth) | nm | ≥ 13 |
| Insertion Loss | dB | ≤ 0.60(Pass Ch.) ≤ 0.40(Reflected Ch.) |
| Channel Ripple | dB | ≤ 0.40 |
| Channel Isolation (Demux only) | dB | ≥ 30 (Adjacent) ≥ 40(Non-adjacent) |
| Express Channel Isolation | dB | ≥ 15 |
| Insertion Loss Temperature Sensitivity | dB/°C | ≤ 0.003 |
| Wavelength Temperature Shifting | nm/°C | ≤ 0.002 |
| Polarization Dependent Loss | dB | ≤ 0.10 |
| Polarization Mode Dispersion | ps | ≤ 0.10 |
| Directivity | dB | ≥ 50 |
| Return Loss | dB | ≥ 45 |
| Optical Power | mW | ≤ 300 |
| Operating Temperature | °C | 0 to +70 (Extended temperatures are also available upon request) |
| Storage Temperature | °C | – 40 to +85 |
| Package Dimensions (LxWxH) | mm | A= Standard, ?5.5xL34 (250um bare fiber) ?5.5xL38 (900um jacket fiber) M=Compact, ?4.8XL30 (250um bare fiber) N=Mini, ?4.2xL28 (250um bare fiber) C=98x14x8.5 (2&3 mm fiber jacket) S=89x51x8.0 (2&3 mm fiber jacket) |
All values referenced are without connector.
