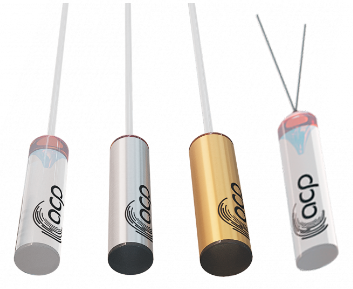

單模多光纖準直器
準直器是用來縮小光束的裝置，使光束的空間橫截面更小;或者用來聚焦一束光并重新引導它，使它對準不同的方向，使其平行/準直。
特性
低插入損耗
低背反射
高環境穩定性
寬工作波長
緊湊的尺寸
優異的環境機械穩定性
應用程序
光纖實驗室使用
激光束準直
光纖到光纖耦合
局域網
有線電視系統
用戶環路
纖維儀器
產品規格
| Parameter | Unit | Specifications | |||
|---|---|---|---|---|---|
| Operating Wavelength | nm | 1310±30, 1550±30, 1310/1550±30 or 980/1550±30 | |||
| Number of Fiber | Dual Fiber | Multi Fiber | |||
| Grade | P | A | P | A | |
| Transmission Insertion Loss | dB | Typ.1): 0.20 Max.: ≤0.28 | Typ.1): 0.30 Max.: ≤0.40 | Typ.1): 0.30 Max.: ≤0.40 | Typ.1): 0.40 Max.: ≤0.50 |
| Reflection Loss Between Two Fibers | dB | ≤ 0.282) | ≤ 0.402) | ≤ 0.402) | ≤ 0.502) |
| Return Loss | dB | ≥ 60 | ≥ 60 | ≥ 60 | ≥ 60 |
| Beam Diameter | mm | ≤ 0.45 (?1.8 Lens) ≤ 0.35 (?1.0 Lens) | ≤ 0.50 | ||
| Operating Temperature | °C | – 20 to +75 | |||
| Storage Temperature | °C | – 40 to +85 | |||
| Package Dimensions | mm | ?1.8(OD) Lens (Standard): A=4×10 gold plated SS tube B=3.2×10 Gold plated SS tube C=2.4×10 SS tube (Gold plated optional) D=2.78×10 Glass tube or custom size ?1.0(OD) Lens (Min-size): | ?1.8(OD) Lens (Standard): B=3.2×10 Gold plated SS tube C=2.4×10 SS tube (Gold plated optional) D=2.78×10 Glass tube or custom size | ||
Note:
1) At 10mm working distance and single wavelength. Dual wavelength IL will increase by 0.1dB.
2) At < 1mm reflection working distance (RWD) and single wavelength with 100% reflection mirror.
All values referenced are without connector.
