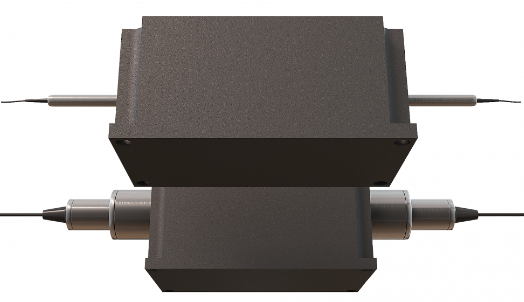

1053/1064nm高功率偏振不敏感光隔離器
ACP的1053和1064nm高功率偏振不敏感隔離器具有低插入損耗、高隔離、高功率處理、高回波損耗、優異的環境穩定性和可靠性的特點。它是光纖激光器和儀器應用的理想選擇。
特性
高的隔離
低插入損耗
高回報損失
低極化靈敏度
無環氧光路
應用程序
光纖放大器
有線電視光纖鏈路
光纖系統測試
光纖局域網系統
電信
產品規格
| Parameter | Unit | Specifications | |||
|---|---|---|---|---|---|
| Operating Wavelength | nm | 1053 | 1064 | ||
| Optical Power | W | 10 | 20 | 1 | 2 |
| Isolation (Typ.) | dB | 30 | 35 | ||
| Isolation (Min.) | dB | ≥ 251) | ≥ 281) | ||
| Insertion Loss (Typ.) | dB | 1.32) | 1.72) | ||
| Insertion Loss (Max.) | dB | ≤ 1.53) | ≤ 2.53) | ≤ 3.03) | |
| Return Loss (In/Out) | dB | ≥ 45/45 | ≥ 50/50 | ||
| Polarization Dependent Loss | dB | ≤ 0.15 | ≤ 0.2 | ||
| Peak Power for ns Pulse (Max.) | kW | ≤ 5 | ≤ 10 | ||
| Tensile Load (Max.) | N | ≤ 5 | |||
| Fiber Type | HI 1060 | ||||
| Fiber Length (Min.) | m | 1 (each end) | |||
| Operating Temperature | °C | 10 to +50 | |||
| Storage Temperature | °C | 0 to +60 | |||
| Package Dimensions (LxWxH) | mm | A Package 60×31.5×28 | A Package 65x40x40 | M Package 33×11.5×17 | |
Note:
1) Overall bandwidth at 23°C
2) Not including connector, splice and fiber-end Fresnel losses.
3) Including PDL, operating wavelength range, -20° C to +70° C.
All values referenced are without connector.
