保偏雙光纖準直器
偏振保持(PM)產品是具有精確保持線性偏振狀態的光纖器件。ACP為其PM產品提供三種選擇:慢軸工作，快速軸工作和兩軸工作。
特性
低插入損耗
低背反射
高環境穩定性
高消光比
應用程序
點隔離器
激光束準直
PW波分復用
產品規格
| Parameter | Unit | Specifications | ||
|---|---|---|---|---|
| Operating Wavelength | nm | 1310±30, 1550±30 or custom | ||
| Working Distance | mm | 5 or custom | ||
| Insertion Loss | dB | 0.20 Typ. ≤0.25 Max. | ||
| Return Loss | dB | ≥ 60 | ||
| Extinction Ratio (ER) | dB | 25 Typ. ≥22 Min. | ||
| Tensile Load | N | 5 | ||
| Operating Temperature | °C | – 5 to +75 | ||
| Storage Temperature | °C | – 40 to +85 | ||

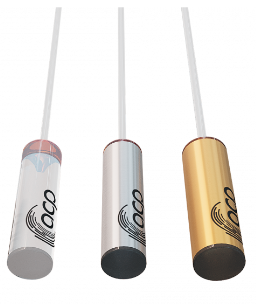

| Package Dimensions | mm | ?1.8(OD) Lens* (Standard): A=4×10 Gold plated SS tube B=3.2×10 Gold plated SS tube C=2.4×10 SS tube (Gold plated optional) D=2.78×10 Glass tube or custom size ?1.0(OD) Lens* (Mini-size): | ||
1) The PM fiber and the connector key are aligned to the slow axis
2) The ER is for fiber ≤ 0.75m. Increase fiber length can decrease the ER.
3) For devices with connectors, insertion loss will be 0.3dB higher, return loss will be 5dB lower, and extinction ratio will be 2dB lower
*The diameter indicates outer diameter (OD) of lens.
All values referenced are without connector.
