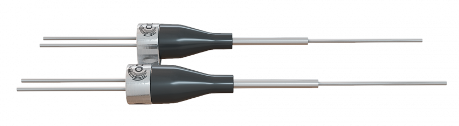

InGaAs PIN光電二極管
光電二極管是一種探測器，當被光照射時會產生電信號。ACP提供各種不同類型的光電二極管，包括InGaAs PIN光電二極管。
特性
寬模擬帶寬
寬光譜響應(1000~1650nm)
高質量和可靠性
低成本
應用程序
DWDM功率監控
EDFA中的增益和功率監測
共存的
光交叉連接
高速測試系統
測量儀器
產品規格
| Parameter | Unit | Specifications | ||||
|---|---|---|---|---|---|---|
| Symbol | Test Conditions | Min. | Typ. | Max. | ||
| Operating Wavelength | nm | λ | – | 1000 – 1650 | ||
| Dark Current | nA | ID | VR=5V, Ee=0 | 0.20 | 0.50 | |
| Responsivity | A/W | Re | VR=5V, λ=1310nm | 0.85 | 0.90 | |
| Responsivity | A/W | Re | VR=5V, λ=1550nm | 0.90 | 0.95 | |
| Responsivity | A/W | Re | VR=0V, λ=1310nm | 0.85 | ||
| Responsivity | A/W | Re | VR=0V, λ=1550nm | 0.90 | ||
| Capacitance | pF | c | f=1MHz, Case grounded VR=5V, Ee=0 | 0.63 | 0.75 | |
| Operating Voltage | V | Vopr | – | – 5 | – 15 | |
| Back Reflection | dB | RL | – | – 40 | ||
| Frequency Responsibility | GHz | BW | VR=5V, 50Ω Load with lead, length=6mm, Case open | 2 | ||
| Package Dimension | See “MECHANICAL DIMENSIONS” | |||||
| ABSOLUTE MAXIMUM RATINGS(T=25°C) | ||||||
| Parameter | Min. | Typ. | Max. | |||
| Reverse Voltage | V | – | – | 25 | ||
| Input Optical Power | dBm | – | – | 10 | ||
| Reverse Current | mA | – | – | 10 | ||
| Forward Current | mA | – | – | 10 | ||
| Operating Temperature | °C | – | – | – 40 | +85 | |
| Storage Temperature | °C | – | – | – 40 | +85 | |
| Lead Solder Temperature | °C | – | – | +260 | ||
| Lead Solder Duration | s | – | – | 10 | ||
| Fiber Yield Strength | N | – | – | 5 | ||
Note
1. ESD protection is imperative. It is recommended to use grounding straps, anti-static mats and other EDS protective equipment when handling or testing a photodiode device.
2. Please shorten the length of device leads as much as possible.
All parameters measured under 25°C.
