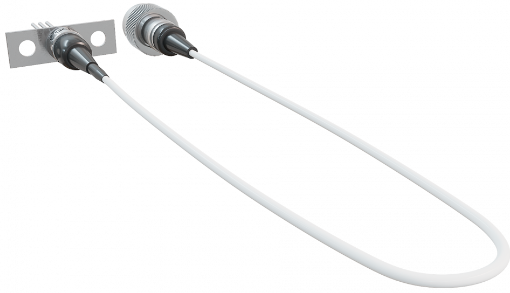

高線性InGaAs PIN光電二極管
ACP的PTD-HL系列InGaAs PIN光電二極管在1310nm和1550nm波段敏感。它具有高線性度和極低的二階調制間失真(IMD2)。我們最先進的平面制造技術保證了高質量和可靠性。
特性
平面半導體設計與介電鈍化
帶光纖尾纖的3針同軸流線包裝
優越的噪聲和光電性能(高線性)
密封包裝和100%吹掃老化
應用程序
光通信系統
光功率監測器
模擬有線電視應用，如高頻(860MHz)有線電視接收機
多址發射機等。
產品規格
| Parameter | Unit | Specifications | ||||
|---|---|---|---|---|---|---|
| Symbol | Test Conditions | Min. | Typ. | Max. | ||
| Operating Wavelength | nm | λ | – | 1000 – 1650 | ||
| Dark Current | nA | ID | VR=5V, Ee=0 | – | – | 0.2 |
| Responsivity | A/W | Re | VR=5V, λ=1310nm | 0.85 | 0.90 | – |
| Responsivity | A/W | Re | VR=5V, λ=1550nm | 0.90 | 0.95 | – |
| Capacitance | pF | c | f=1MHz, Case grounded VR=5V, Ee=0 | – | 0.63 | 0.75 |
| Operating Voltage | V | Vopr | – | – | – 5 | -15 |
| Second Order Inter-modulation Distortion | dB | IMD2 | f1=400MHz, P1= – 3dBm f2=450.25MHz, P2= – 3dBm MI=40%, Pavg=0dBm, RIoad=50Ω VR=12V | -70 | – | -80 |
| Back Reflection | dB | RL | – | – | – | – 40 |
| Frequency Responsibility | GHz | BW | VR=5V, 50Ω Load with lead, length=6mm, Case open | 2 | – | – |
| Package Dimension | – | – | See “MECHANICAL DIMENSIONS” | |||
| ABSOLUTE MAXIMUM RATINGS(T=25°C) | ||||||
| Parameter | Min. | Typ. | Max. | |||
| Reverse Voltage | V | – | – | – | – | 25 |
| Input Optical Power | dBm | – | – | – | – | 10 |
| Reverse Current | mA | – | – | – | – | 10 |
| Forward Current | mA | – | – | – | – | 10 |
| Operating Temperature | °C | – | – | – 40 | – | +85 |
| Storage Temperature | °C | – | – | – 40 | – | +85 |
| Lead Solder Temperature | °C | – | – | – | – | +260 |
| Lead Solder Duration | s | – | – | – | – | 10 |
| Fiber Yield Strength | N | – | – | 5 | – | – |
Note
1. ESD protection is imperative. It is recommended to use grounding straps, anti-static mats and other EDS protective equipment when handling or testing a photodiode device.
2. Please shorten the length of device leads as much as possible.
All parameters measured under 25°C.
